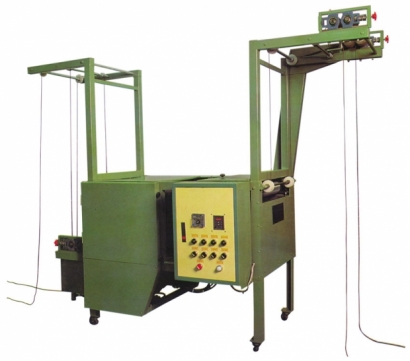

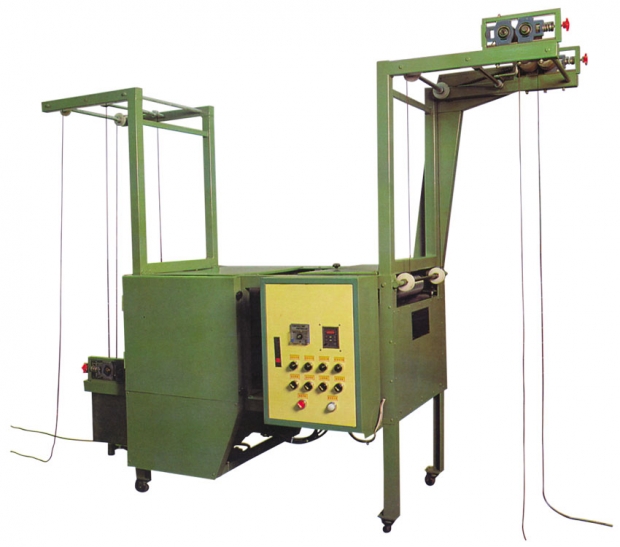

Suitable for tipping all kinds shoelaces, garment strings machine manufacturers.CL-701 has a break-through design in shining, drying, soften and waxing shoelace. All function of heating, winding, waxing & production and be controlled individually. With not only eye-catching and space saving design, CL-701 also includes following features.
WIND BLOWING HEATER
CL-701 equipped 2 fans with heater, which helps to blow-dry shoelaces much more efficiently and thoroughly. Also it can avoid the shoelace by touching the heater in a single side and making shoelaces harder or not dry enough.
AUTOMATIC HEATING CONTROLLER
The heating temperature is monitored and controlled by manual setting to avoid the chance of over heat.

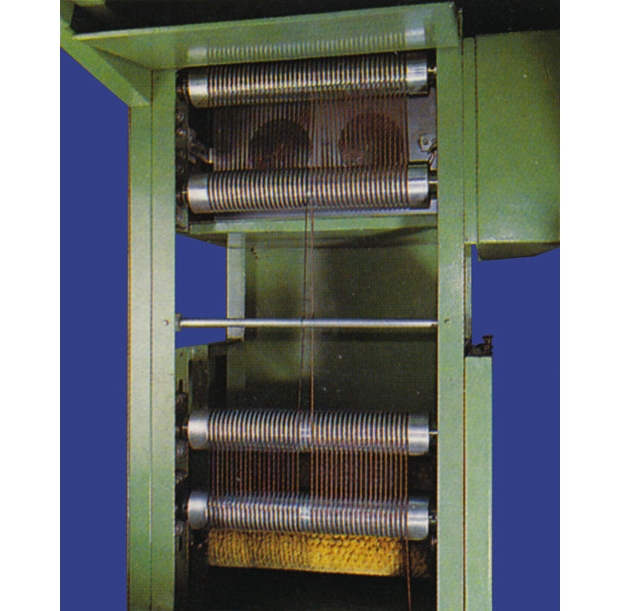

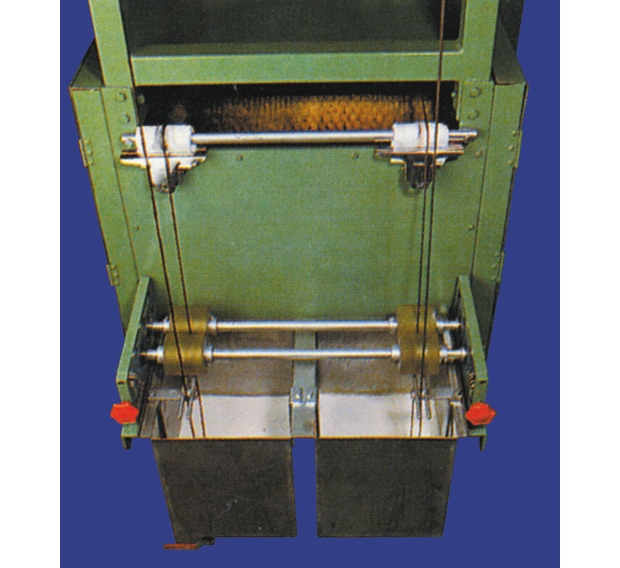

NEW DOUBLE WAXING BRUSHES
CL-701 adapts double waxing brushes to double shin the shoelace.
![](/upload/images/2023032312053273874.png)
![](/upload/images/2023032312053274704.png)
![](/upload/images/2023032312053262529.png)
Production capacity | 6~10 M/min |
Motor | 2-1/4HP, 3PH |
Heater | 2.4 kw |
Power Consumption | 17A |
Machine Size | 2510 x 850 x1785 mm |
The capacity of production is around 6-10 M/Min. depends on the thickness and drying level of strings.
