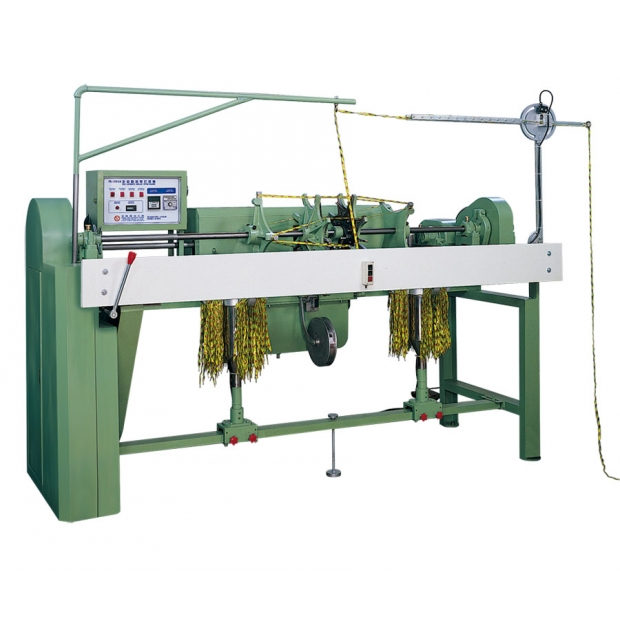

CL-101A equipped a unique patent-designed of finished products loading & counting devices with an quantity warming alarm by ordered feature. Then exchanges to the next hook of loading devices, automatically.

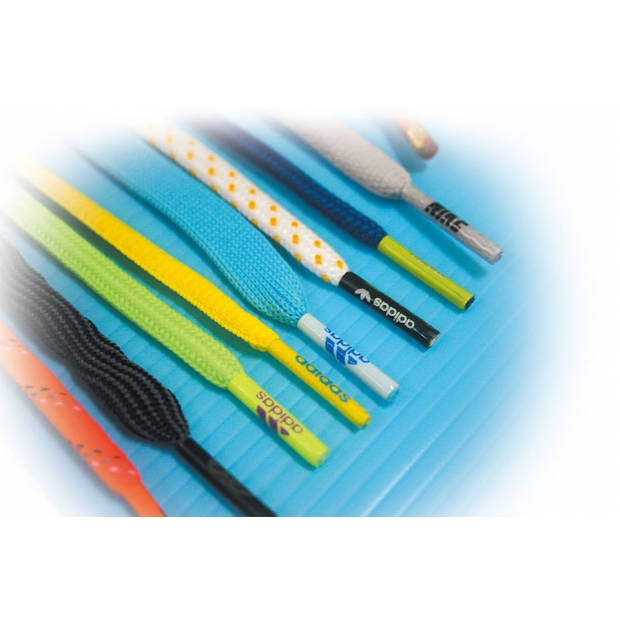

Suitable for tipping all kinds shoelaces, garment strings machine manufacturers.

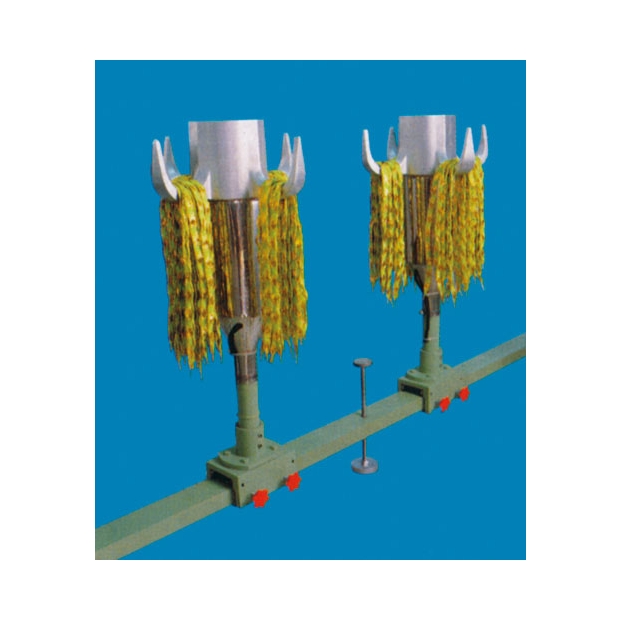

PATENT STRINGS LOADING DEVICES
CL-101A equipped a unique patent-designed of finished products loading & counting devices with an quantity warming alarm by ordered feature. Then exchanges to the next hook of loading devices, automatically.

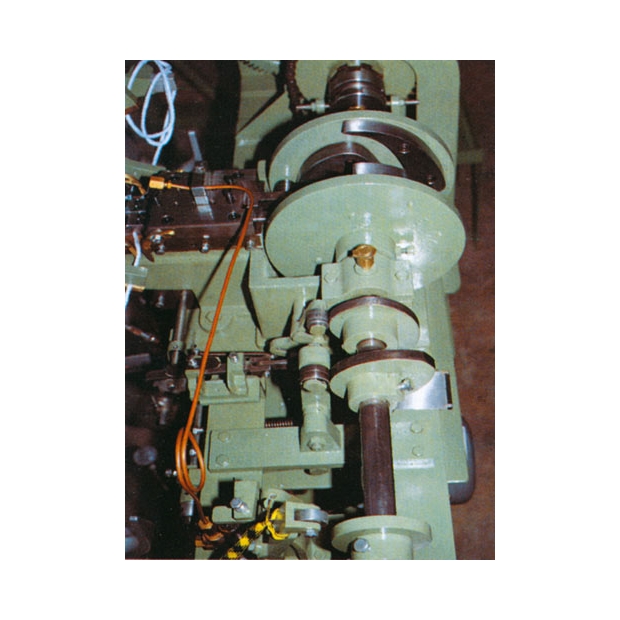

STEADINESS & DURABILITY
CL-101A has an implanted quality design on rigid body construction and steel mould to guarantee the steadiness and durability of machine performance.
AUTOMATION

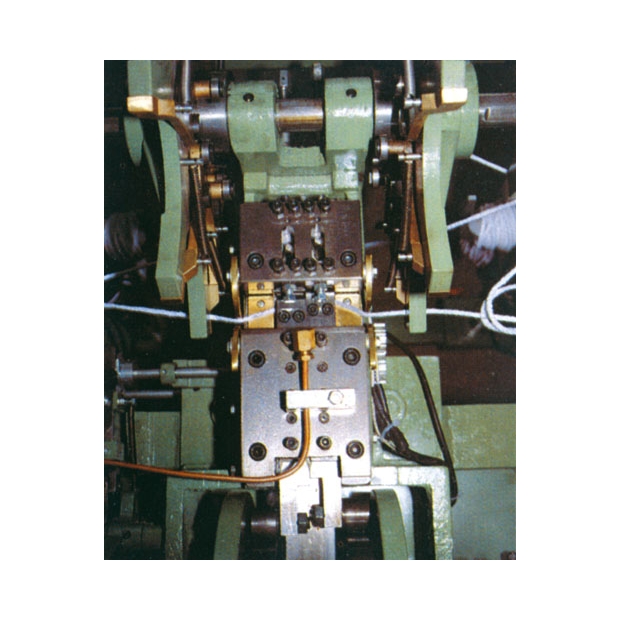

CL-101A labor and efficiency creator, capable of plasticizing, tipping, cutting, Loading and counting devices automatically. Above great compatibility of CL-101A makes you as a profit winner.
SAFETY
Operation is secured by unique stopping devices built on M/C.
| Production capacity | 55~70 Strings/min |
| Machine Motor | 1HP, 3Phase |
| The Sizes of Mould Linkers | 2.0, 2.2, 2.5, 2.8, 3.03.2, 3.5, 3.8, 4.0, 4.2 mm |
| Mode | Gauge | Tipping Length |
| CL-101A | 62” | 16”~ 62”(40~150 cm) |
| 85” | 16”~ 85”(40~210 cm) | |
| 100” | 16”~100”(40~250 cm) | |
| 120” | 16”~120”(40~300 cm) | |
| 140” | 16”~140”(40~350cm) | |
| CL-102 | 4”(10cm)~Limitless Length | |
| CL-103 | 4”(10cm)~Limitless Length |
| Mode | Gauge | Machine Size | Net Weight | Dimension of Wooden Case | Gross weight |

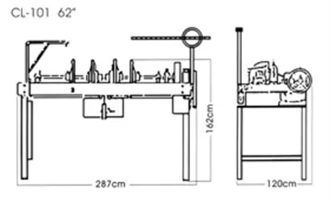

| CL-101A | 62” | 287 x 120 x 162cm | 710 kg | 297 x 130 x 187 cm | 930kg |
| 85” | 340 x 120 x 185cm | 825 kg | 350 x 130 x 210 cm | 1095kg | |
| 100” | 388 x 120 x 185cm | 900 kg | 398 x 130 x 210 cm | 1220kg | |
| 120” | 440 x 120 x 190cm | 1,020 kg | 450 x 130 x 215 cm | 1400kg | |
| 140” | 500 x 120 x 200cm | 1,200 kg | 510 x 130 x 225cm | 1650kg | |
| CL-102 | 95 x 95 x 92cm | 205 kg | 105 x 105 x 117cm | 300kg | |
| CL-103 | 80 x 73 x 95cm | 95 kg | 90 x 83 x 120cm | 135kg |
